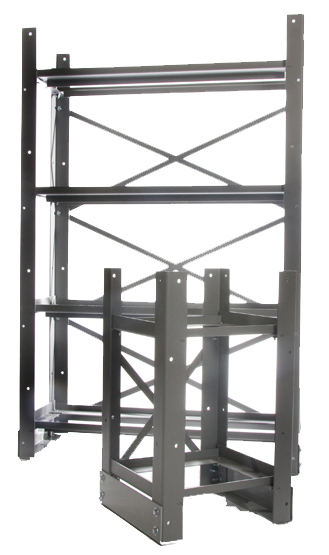

| ESS line of standard Top Terminal Racks is designed to accommodate most UPS and Telecom top terminal batteries in the market. Our Top Terminal Racks are shipped pre-assembled for easy installation and are Seismically Certified.
- 2-5 day lead times on ESS standard quick ship VRLA racks
- We provide complete site engineering and design of rack solutions to help with your BOM for the project
- DC Breakers and fuses from 30 Amps to 2,000 Amps
- Complete high flex cable kits from 8AWG to 777 DLO
- Complete system staging for simplified installations
- Battery Racks are Seismically Certified (UBC) and (AISC), including California standards
- Consistent weld quality using latest robotic welders
- Battery Racks are powder coated with a corrosion resistant powder using a five stage emersion pretreatment process
- Custom colors and finishes are available
- All VRLA racks adjust to fit top terminal batteries from 100wpc to 800wpc (watts per cell)
- VRLA racks ship pre-assembled for fast installation
| R1T2 |
2 |
17.0 |
16.3 |
28.0 |
44 |
| R1T2Z4 |
2 |
17.0 |
16.3 |
28.2 |
54 |
| R1T4 |
4 |
31.5 |
16.3 |
28.0 |
55 |
| R1T4Z4 |
4 |
31.5 |
16.3 |
28.2 |
65 |
| R1T5 |
5 |
40.5 |
16.3 |
28.0 |
60 |
| R1T5Z4 |
5 |
40.5 |
16.3 |
28.2 |
70 |
| R2T2 |
4 |
17.0 |
16.3 |
28.0 |
50 |
| R2T2Z4 |
4 |
17.0 |
16.3 |
28.2 |
60 |
| R2T4 |
8 |
31.5 |
16.3 |
28.0 |
70 |
| R2T4Z4 |
8 |
31.5 |
16.3 |
28.2 |
80 |
| R2T5 |
10 |
40.5 |
16.3 |
28.0 |
80 |
| R2T5Z4 |
10 |
40.5 |
16.3 |
28.2 |
90 |
| R3T2 |
6 |
17.0 |
16.3 |
45.0 |
79 |
| R3T2Z4 |
6 |
17.0 |
16.3 |
45.2 |
89 |
| R3T4 |
12 |
31.5 |
16.3 |
45.0 |
109 |
| R3T4Z4 |
12 |
31.5 |
16.3 |
45.2 |
119 |
| R3T5 |
15 |
40.5 |
16.3 |
45.0 |
124 |
| R3T5Z4 |
15 |
40.5 |
16.3 |
45.2 |
134 |
| R4T2 |
8 |
17.0 |
16.3 |
62.0 |
107 |
| R4T2Z4 |
8 |
17.0 |
16.3 |
62.2 |
117 |
| R4T4 |
16 |
31.5 |
16.3 |
62.0 |
147 |
| R4T4Z4 |
16 |
31.5 |
16.3 |
62.2 |
157 |
| R4T5 |
20 |
40.5 |
16.3 |
62.0 |
167 |

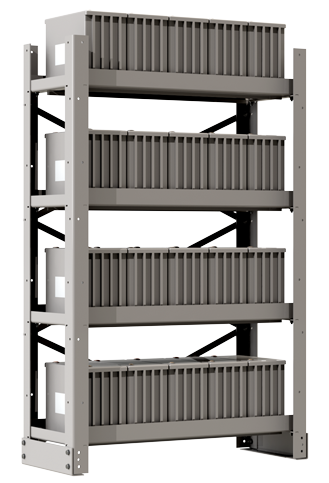

| R4T5Z4 |
20 |
40.5 |
16.3 |
62.2 |
177 |
| |
|
|
|
|
|
| Non-stocking racks available. |
| R5T2 |
10 |
17.0 |
16.3 |
79.0 |
136 |
| R5T2Z4 |
10 |
17.0 |
16.3 |
79.2 |
146 |
| R5T4 |
20 |
31.5 |
16.3 |
79.0 |
186 |
| R5T4Z4 |
20 |
31.5 |
16.3 |
79.2 |
196 |
| R5T5 |
25 |
40.5 |
16.3 |
79.0 |
211 |
| R5T5Z4 |
25 |
40.5 |
16.3 |
79.2 |
221 |
| |
|
|
|
|
|
Racks can be custom configured for other batteries, consult factory.
