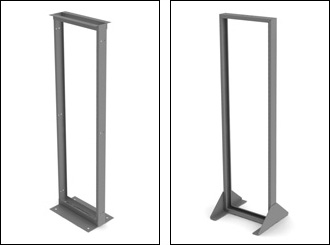

Equipment Relay Racks

• ESS manufactures a complete line of Telecom Equipment power/battery racks and shelves. We stock 19”, 23”, and Zone 4-23” equipment racks. We keep various sizes & styles of battery shelves in stock for use with ESS or other brands of racks. Other accessories such as bus bars, cables, fuse/breaker panels, and batteries are available for immediate shipment
• Our heavy-duty Telecom Equipment Power racks and shelves are designed to meet/exceed weight requirements of large batteries
• ESS is proud to offer a complete line of Telecom/Energy Battery Racks that are NEBS GR-63 Certified for Seismic Applications

Download Standard Duty Equipment Rack Data Sheet

Download Heavy Duty Equipment Rack Data Sheet

[top]

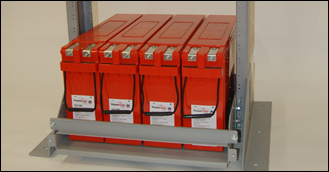

Telergy Racks

Feature/Advantage

• At 26" wide, the Telergy Rack allows for up to 12 Strings (at 24v) in same footprint of any 23" relay rack. Providing up to 2,280 Ahr in only 4.3 sq ft. It is the smallest footprint of any NEBS Rated rack in the U.S.
• Unlike other equipment racks, the Telergy Rack is completely accessible from the front
• All cable connections are front accessible. The advantage of Telergy vs. other side mounted hardware rack, is that connections cannot be accessed during battery maintenance or replacement if the sides are located next to walls or other racks
• On Telergy racks, cables are used on the sides of the rack instead of open copper bus bars, providing fewer un-insulated parts to cause damage, especially during a seismic event. The heavily insulated cabling is far safer than other tiered racks with thin or un-insulated side cover plates as protection from short circuits, ground faults and fires
• The Telergy output buss bars are located on the top, recessed into the frame of the rack for protection but still accessible by 360 degrees
• Additional .250" air space along the sides of the batteries. This gives air flow to provide a cooler and longer life of the battery, yet they are still held in by supports to prevent them from moving
• The racks are available in various heights of 3, 4, 5 and 6 tiers
• Available with optional circuit breaker protection on each string or for bulk output
• The 3 tier rack has an optional top plate for mounting a half rack (19" or 23") on top of the rack for equipment or a DC Plant
• The 4 and 5 tier racks feature optional rack mount rails for mounting rectifiers and other equipment in the same rack, resulting in a complete high density DC Plant and battery solution
• The rack is adjustable to all 140-190 Ahr front terminal batteries
• Prewired and pre-assembled to expedite installations. Only anchoring and installation of the batteries is required

Download Telergy Data Sheet
