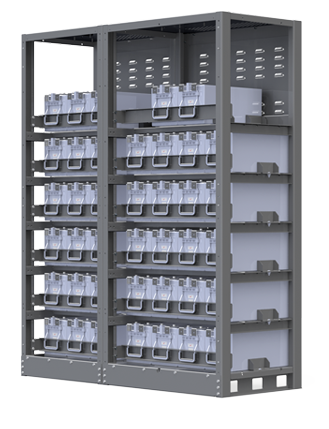

EFR63 BATTERY RACK

• Space saving footprint is the industry's most compact design.
• Holds up to 41-12 Volt Group 4D jars (492V).  Cabinets can be configured to house a wide range of voltages.
• Ships fully loaded from factory for easy installation.
• Seismic certified to IBC (2012), ASCE-7 (2010) and CBC (2010) codes.
• Easy maintenance design allows full front access for safety.
• DC Circuit Breakers up to 800A available. Breaker options include: Shunt Trips, Auxiliary Contacts and Under Voltage Releases.
• Fully welded frame construction made of heavy gauge steel.
• Battery Racks are powder coated with a corrosion resistant powder using a five stage emersion pretreatment process.

EFR63 Brochure       EFR63 Spec Drawing

[top]

EFR53 BATTERY RACK

• Holds up to 40-12 Volt Group 4D jars (480V). Cabinets can be configured to house a wide range of voltages.
• Ships fully loaded from factory for easy installation.
• Seismic certified to IBC (2012), ASCE-7 (2010) and CBC (2010) codes.
• Easy maintenance design allows full front access for safety.
• DC Circuit Breakers up to 800A available. Breaker options include: Shunt Trips, Auxiliary Contacts and Under Voltage Releases.
• Fully welded frame construction made of heavy gauge steel.
• Battery Racks are powder coated with a corrosion resistant powder using a five stage emersion pretreatment process.

EFR53 Brochure       EFR53 Spec Drawing

[top]

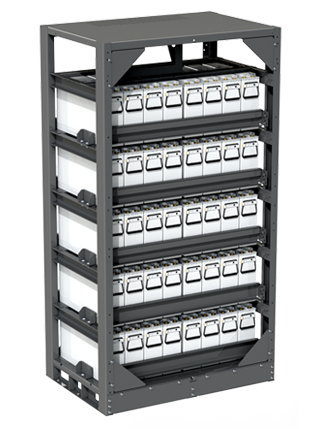

EFR54 BATTERY RACK

• Holds up to 40 jars of 12 Volt, 750 wpc Front Access Batteries.
• Space saving foot print is the industry most compact design.
• Seismic certified to IBC (2012), ASCE-7 (2010) and CBC (2010) codes.
• Easy maintenance design allows full front access for safety.
• DC Circuit Breakers up to 800A available. Breaker options include: Shunt Trips, Auxiliary Contacts and Under Voltage Releases.
• Fully welded frame construction made of heavy gauge steel.
• Battery Racks are powder coated with a corrosion resistant powder using a five stage emersion pretreatment process.

EFR54 Brochure       EFR54 Spec Drawing

[top]

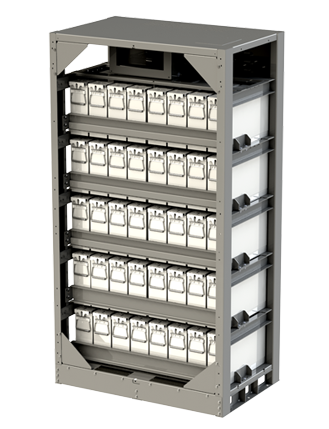

EFR52 BATTERY RACK

• Holds up to 40 jars of 12 Volt, 350 wpc to 700 wpc Front Access Batteries.
• Space saving foot print is the industry's most compact design.
• Seismic certified to IBC (2012), ASCE-7 (2010) and CBC (2010) codes.
• Easy maintenance design allows full front access for safety.
• DC Circuit Breakers up to 800A available. Breaker options include: Shunt Trips, Auxiliary Contacts and Under Voltage Releases.
• Fully welded frame construction made of heavy gauge steel.
• Battery Racks are powder coated with a corrosion resistant powder using a five stage emersion pretreatment process.

EFR52 Brochure       EFR52 Spec Drawing

[top]

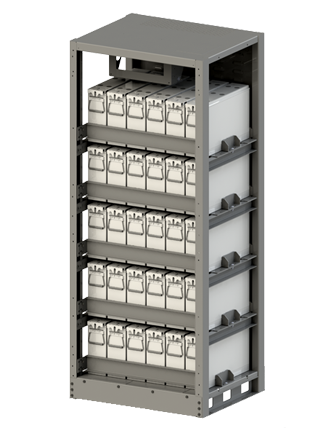

EFR51 BATTERY RACK

• Holds up to 30 jars of 12 Volt, 350 wpc to 700 wpc Front Access Batteries.
• Ships fully loaded with batteries for easy installation.
• Seismic certified to IBC (2012), ASCE-7 (2010) and CBC (2010) codes.
• Easy maintenance design allows full front access for safety.
• DC Circuit Breakers up to 600A available. Breaker options include: Shunt Trips, Auxiliary Contacts and Under Voltage Releases.
• Fully welded frame construction made of heavy gauge steel.
• Battery Racks are powder coated with a corrosion resistant powder using a five stage emersion pretreatment process.

EFR51 Brochure       EFR51 Spec Drawing

[top]

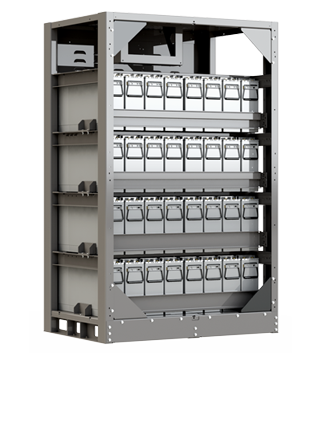

EFR44 BATTERY RACK

• Holds up to 32 jars of 12 Volt, 750 wpc Front Access Batteries.
• Space saving footprint is the Industry's most compact design.
• Seismic certified to IBC (2012), ASCE-7 (2010) and CBC (2010) codes.
• Easy maintenance design allows full front access for safety.
• DC Circuit Breakers up to 600A available. Breaker options include: Shunt Trips, Auxiliary Contacts and Under Voltage Releases.
• Fully welded frame construction made of heavy gauge steel.
• Battery Racks are powder coated with a corrosion resistant powder using a five stage emersion pretreatment process.

EFR44 Brochure       EFR44 Spec Drawing

[top]

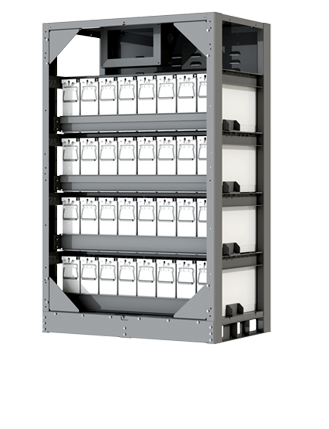

EFR42 BATTERY RACK

• Holds up to 32 jars of 12 Volt, 350 wpc to 700 wpc Front Access Batteries
• Seismic certified to IBC (2012) ASCE-7 (2010) and CBC (2010) codes.
• Easy maintenance design allows full front access for safety.
• DC Circuit Breakers up to 600A available. Breaker options include: Shunt Trips, Auxiliary Contacts and Under Voltage Releases.
• Fully welded frame construction made of heavy gauge steel.
• Battery Racks are powder coated with a corrosion resistant powder using a five stage emersion pretreatment process.

EFR42 Brochure       EFR42 Spec Drawing
